20 Ton Flake Ice Making Maker With Stainless Steel Ice Storage Room

Huaxian flake ice making maker is suitable for supermarkets, hotpot restaurants, restaurants, food processing, seafood preservation, food quick freezing, aquatic product processing, deep processing of poultry and seafood, chemical dyes, pharmaceuticals, poultry slaughter, concrete cooling, mixing and cooling, fishing boat ocean transportation, seafood and vegetable preservation, and other fields.

control system

Adopting fully automatic microcomputer control and programmable PLC to automatically control the start and stop of the ice machine, the mechanical operation system of the evaporator and the water supply system of the ice machine are coordinated and matched, achieving efficient operation. The entire ice making process of the ice machine is equipped with intelligent controls such as water shortage protection, full ice protection, phase sequence protection, high and low pressure protection, compressor and reducer overload protection. When the ice machine is protected, it automatically stops for protection and displays a fault indicator light on the PLC output point (the PLC fault point flashes when the fault occurs). When the fault is restored, the PLC receives a signal and automatically starts the ice machine to achieve fully automatic control.

Ice storage room

Made of 304 stainless steel material, it directly and effectively prevents equipment from rusting and corrosion, increases equipment service life, and uses polyurethane foam to more effectively preserve borneol and prevent it from melting.

Installation of ice machine

Connect to the power supply and tap water. The tap water automatically enters the water storage tank, and is pumped by a cold water circulation pump to enter the water distribution tray from the inlet of the ice machine evaporator.

Through a sprinkler pipe, water is evenly sprinkled onto the inner wall of the evaporator, forming a water film. The water film exchanges heat with the refrigerant in the evaporator channel, causing a rapid decrease in temperature and forming a thin layer of ice on the inner wall of the evaporator,

When the ice reaches the required thickness (under normal circumstances, the thickness of the ice sheet is 1.5mm~2.2mm), it will break into ice sheets under the rotation and compression of the ice knife, and the ice sheets will freely fall into the ice storage tank through the ice drop port under the action of gravity. Part of the water that has not formed ice sheets flows back from the return tank to the water tank through a water baffle, and is recycled for ice making.

Product name: Flake Ice Making Maker Model: HXFI-20T Ice output: 20 ton/24hrs Power: 56kw Power supply: 380V/50Hz/3Phase Cooling way: water cooled Water feeding type: fresh water Usage: fishery, aquatic product processing, food processing Operation: one button start Optional: 1. upgrade ice drum to be food grade stainless steel material; 2. add a stainless steel structure to support the ice machine; 3. add an ice storage room below the ice machine to store ice flakes.

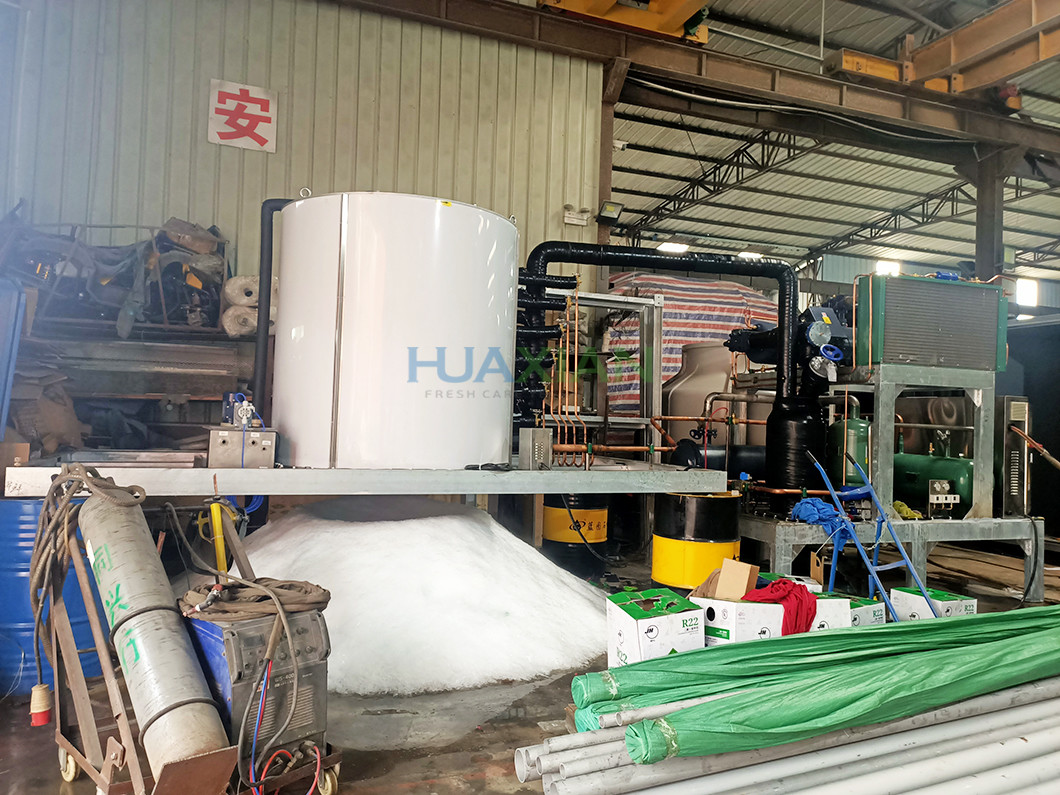

Product Pictures

Components

Models

Applications

1. Hotel seafood display, vegetable preservation, packaging and quality assurance of special dishes;

2. Supermarket seafood display and transportation, vegetable preservation and transportation;

3. Food factory food addition, raw material preservation, food pre-cooling;

4. Meat processing plants Pre-cooling, preservation, freezing and transportation of live-killed livestock and poultry;

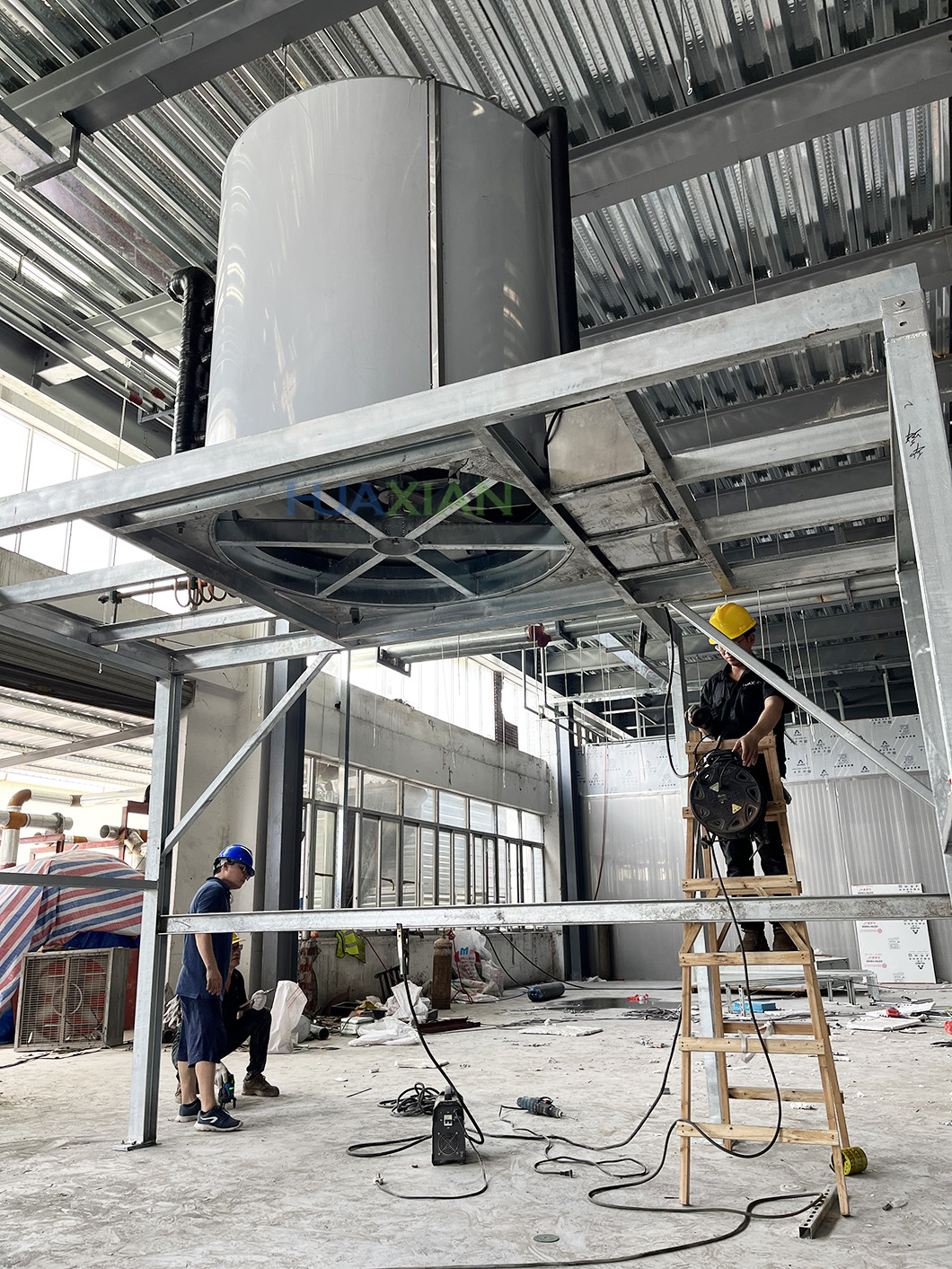

Usage Case

Our Service

• Project design
• Drawing
• Manufacturing
• On site supervise
• Clients training
• After sales services.

After-sales Services

• 24/7 consults
• 24~72 hours to solve problem
• 1 year warranty
• Life-long maintenance
• Installation: installation and operation manual, online training.

FAQ

1.Can the ice machine be 220V single phase?

• Single phase compressor is too small cooling capacity to run an ice machine, we suggest 3 phase compressor.

2.What are the functions of ice flakes?

• The ice flakes are dry and large surface, can keep fish fresh, and lower produce temperature during food processing.

3.How to install ice maker machine?

• 20 ton ice machine is integrated type, connect the correct power cable and water pipeline.

4.How to operate the ice maker machine?

• The ice machine is easy operation, one button start.

5.What is the payment term?

• By T/T, 30% deposit, the balance will be paid before shipment.
