0~10°C Industrial Refrigeration System Vegetable And Fruit Cold Storage Room

Introduction

Vegetable cold storage room is a storage method that inhibits the activity of microorganisms and enzymes and prolongs the long-term storage of vegetables.Cold storage technology is the main way of low-temperature preservation of modern vegetables and fruits. The cold storage temperature range of vegetables is 0 ℃ ~ 15 ℃. Cold storage room can reduce the incidence of pathogenic bacteria and fruit rot, and can also slow down the respiratory metabolism process of vegetables and fruits, so as to prevent decay and prolong the storage period.

What vegetables are suitable for cold storage

What vegetables are suitable for cold storage1
Almost all vegetables are suitable for storage in cold storage, but the storage temperature and humidity of these vegetables are different, so we need to clarify the storage temperature and humidity of different vegetables, so as to ensure the storage effect of vegetables.

• Chinese cabbage: 0-0.5℃, relative humidity: 85-90%;
• Cabbage: 0-0.5℃, relative humidity: 90-95%;
• Lettuce: 0-0.5℃, relative humidity: 95-98%;
• Broccoli: 0.2-0.5°c, relative humidity: 95-100%;
• Green pepper: 8-10 ℃, relative humidity: 90-95%;
• Ginger: 15°c, relative humidity: 85-90%;
• Lotus root: 5°c-8°c, relative humidity: 85-90%;
• Onion: 1.5°c, relative humidity: 70-75%;
• Yam: 4-6°c, relative humidity: 90-95%;
• Radish: 0-1°c, relative humidity: 90-95%;
• Celery: 0°c, relative humidity: 99-100%;
• Turnip: 0-5℃, relative humidity: 85-90%;
• Bamboo shoots: -1°c-0°c, relative humidity: 90-95%;
• Garlic: -4°c~-1°c, relative humidity: 70-75%;
• Potatoes: 3-5°c, relative humidity: 80-85%;
• Carrots: 0-1°c, relative humidity: 90-95%;

The above is the introduction of common vegetable cold storage storage temperature and humidity. Almost all vegetables and fruits are suitable for storage in cold storage. The main purpose is to adjust the temperature of the cold storage to a suitable range, and do a good job of picking, selection, pre-cooling, storage, sorting and other related matters. The ideal storage time can be achieved.

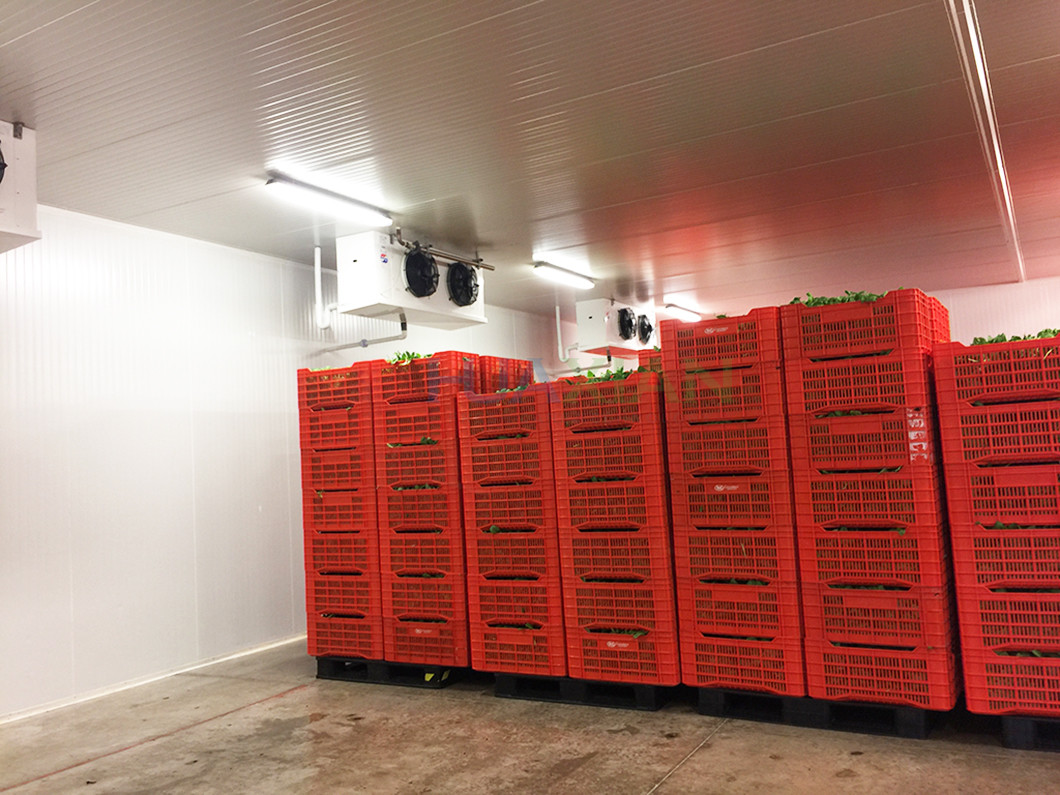

Color Plate Steel 0~+10­°C Cold Storage Room Picture

Components for Reference

The food-grade freezer room is mainly composed of color plate steel storage boards, German compressors, Denmark refrigeration accessories, fans with good heat exchange effects, PLC control electric panels, and precise temperature controllers.

	Panels a.Sandwich type pu panel b.Two sides are color plate steel sheet c.Middle foaming polyurethane (density 40~42kg/m3)		Door a.Manual hinge door b.With emergency open and c.luminescent switch d.Safe when people is locked inside the room
	Compressor Condenser Unit a.Box type, can be placed outdoor b.Germany compressor c.Denmark refrigeration parts d.Low noise + long service life		Evaporator a.Fast cooling speed b.Low consumption c.Electricity or water defrosting
	Control Panel a.Stainless steel case b.PLC control c.Korea or France electric parts d.Automatic operation, automatic frost, alarm		Branded Components a.Expansion valve b.solenoid valve c.Pressure controller d.filter Etc.

Applications

Cold storage has always been an important part of the logistics industry. Cold storage is mainly used for constant temperature and humidity storage of food, dairy products, meat, aquatic products, poultry, fruits and vegetables, beverages, flowers, green plants, tea, medicines, chemical raw materials, electronic instruments, tobacco, alcoholic beverages and other semi-finished and finished products.

Customer's Usage Case

Our Service

• Project design
• Drawing
• Manufacturing
• On site supervise
• Clients training
• After sales services.

After-sales Services

• 24/7 consults
• 24~72 hours to solve problem
• 1 year warranty
• Life-long maintenance
• Installation: installation and operation manual, online training.

FAQ

1.How can I get quotation?

For professional and suitable quotation, we need to know more information from the end user.

• Products for storage:
• Storage capacity (ton):
• External or internal room size(m or feet):
• Room temperature:
• Daily input capacity (ton):
• Power supply (Voltage/Hz/Phase):
• Installation area/country:
• Does the product finish precooling process before storage?

2.If the products don't do the precooling process, can we put the products into cold storage room or walk in freezer?

• Yes, some customers cannot use pre-cooling equipment due to economic or space problems and directly use cold storage equipment. However, it is recommended that the daily input volume should not exceed 10% of the design cold storage volume.

3.How to install the cold storage room / walk in freezer?

• Huaxian offers operation manual, online installation support service; Customer can find local team to install the cold room / freezer, or Huaxian sends technician to customer's site.

4.What is the payment term?

• By T/T, 30% deposit, the balance will be paid before shipment.

HUAXIAN is engaged in fresh care by refrigeration and providing best fresh care solutions on food, meat, seafood, fruit and vegetable by HUAXIAN quality refrigeration equipment and sophisticated technology, so as to maximum prolong shelf life and keep original freshness to create beneficial market values. Presently, our main market is in China, America, Europe, South East Asia and Australia, gradually more and more customers lay trust on us and choose us on cooperations. Our team is hoping to provide technology and wisdom for your cases.

After-sale service is attached importance by us, as normal machine running quite related with customer′s core benefits. We are trying our best guarantee machine running and reduce possible failure rate by these measurements including quality check & control, 7/24 remote technology support, periodically checking system, professional and detailed maintenance manual and local distributor of office service.

HUAXIAN is a common member of excellent equipment suppliers in China, but we proud of Chinese excellent refrigeration fresh equipments as its best cost performance, satisfying performance and service, and it is also developing and innovating day by day with development of industry and technology.
