1000kgs Sea Water Flake Ice Machine To Make Ice Flakes At Sea On Seafaring Vessels

The sea water marine ice maker directly uses sea water to make ice, which differs from the fresh water ice maker in the material of the ice maker's pipeline and the design of the compressor. Due to the fact that the imported water source of the seawater ice machine is seawater, in order to overcome the corrosiveness of seawater, the seawater ice machine uses specialized pipeline materials. At the same time, in order to overcome the problem of severe shaking of ships during offshore operations, the seawater marine ice machine has applied a deep oil groove type piston compressor, which can operate normally even when the ship is tilted at 30 angles.

Configuration: Designed according to the classification society certification standards, using one or more Bitzer semi enclosed deep oil groove piston compressors, suitable for seawater cooling and marine seawater condensers. All components are connected by welding and installed as a whole, with a compact structure. It can operate normally even when the ship swings left and right at 30 angles.

The sea water flake ice machine can be directly installed on fishing boats and used to make ice from seawater. The salvaged seafood can be quickly frozen and preserved, and fishing is one of the main applications of ice slicers worldwide.

Features

Designed specifically for maritime ice making operations; Overcoming seawater corrosion, ship pitching and rolling, etc.

The seawater flake ice machine is a machine that can directly use seawater to produce ice sheets. The machine itself uses materials that are resistant to seawater corrosion, extending the service life of the machine. Seawater ice machines are divided into two types: land and marine. The fundamental design difference is that they solve the problem of ensuring that the bumps caused by the ship during navigation do not affect the machine's ice production. The marine machine uses a closed sprinkler system and a deep oil tank compressor on top of the land machine, perfectly implanting the ice machine into the cabin of the fishing boat.

Due to the use of seawater flake ice machines, the produced ice has a better preservation effect on fish compared to freshwater ice. In foreign countries, marine seawater ice machines have been used on fishing vessels, especially those with longer voyages.

The marine seawater flake ice machine directly uses seawater for ice making and cooling, without the need for an external cooling tower, making it very convenient to use. Due to space constraints, generally only machines with a daily output of 10 tons or smaller are suitable for installation on fishing vessels, and there are higher requirements for the power distribution of fishing vessels.

Brief Introduction of 1 Ton Sea Water Flake Ice Maker Machine

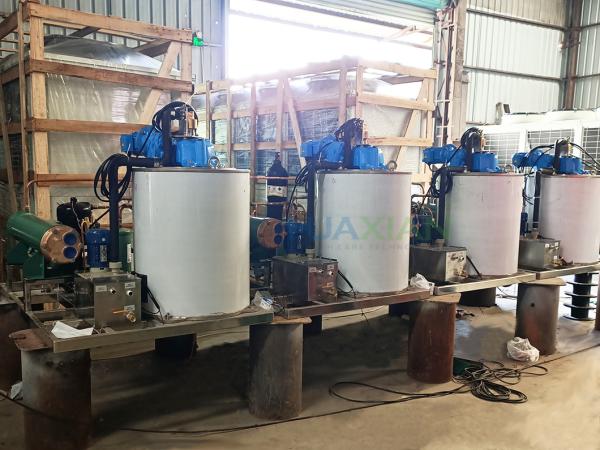

Product Pictures

Components

Models

Applications

1. The flake ice maker machine is suitable for docks, ports or places that need to use seawater to make ice;

2. The flake ice making machine is suitable for fishing boats, suitable for ocean fishing and ice making.

Usage Case

Our Service

• Project design
• Drawing
• Manufacturing
• On site supervise
• Clients training
• After sales services.

After-sales Services

• 24/7 consults
• 24~72 hours to solve problem
• 1 year warranty
• Life-long maintenance
• Installation: installation and operation manual, online training.

FAQ

1.Can the ice machine be 220V single phase?

• Single phase compressor is too small cooling capacity to run an ice machine, we suggest 3 phase compressor.

2.What are the functions of ice flakes?

• The ice flakes are dry and large surface, can keep fish fresh, and lower produce temperature during food processing.

3.How to install ice machine?

• 1 ton ice machine is integrated model, connect the correct power cable and water pipe.

4.How to operate the ice machine?

• The ice machine is easy operation, one button start.

5.What is the payment term?

• By T/T, 30% deposit, the balance will be paid before shipment.
